Good quality High Frequency Screen from China manufacturer - Jiangsu Pengsheng Heavy Industries Co., Ltd.

Price:	100.0~3000.0 USD
Payment Terms:	T/T,L/C,D/P
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZGPS-4/ZGPS-5/ZGPS-6/ZGPS-8

Production Capacity: 80units/month

Delivery Date: 30 days

Screen Surface Area: 4.5/5.2/6/8.1m²

Means of Transport: Ocean,Land

Packing: standard seaworthy packing

Colour: red&green or customized

CE,ISO
Screen Surface Area:4.5/5.2/6/8.1m²

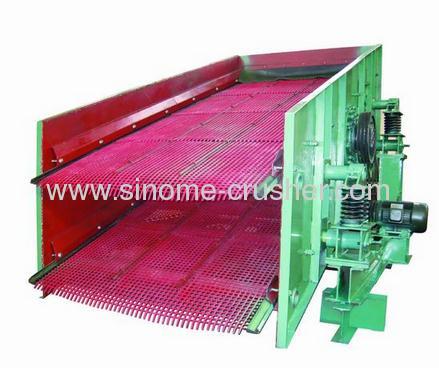

The high frequency screen consists of shaker, pulp distributor, screen frame, rack, suspension springs, screen mesh and other components.

The high frequency screen is of high efficiency, small amplitude, and high frequency of screening. Different from the principle of common screening equipments, high frequency screen adopts high-frequency, on the one hand, destroyed the tension of the slurry surface and the high-speed oscillation of fine-grained material in the screen surface, to accelerate the separate role between the large density (specific gravity) of useful minerals and screen mesh, and increase the probability of contact between minerals whose size is less than the separated grain size, and the screen mesh. This is resulting in better separation conditions to make materials smaller than the separation size, to pass through the screen mesh with slurry

Model	Screen Surface Area (m2)	Screening Concentration(%)	Capacity (t/h)	Power(kw)
ZGPS-4	4.5	30%-40%	15-25	0.72
ZGPS-5	5.2	30%-40%	20-30	1.1
ZGPS-6	6	30%-40%	24-36	1.5
ZGPS-8	8.1	30%-40%	32-48	2.2
